Problem Description:


A scheduled workflow will not get triggered on time if there are three or more workflows scheduled to run at the same point in time.


The usual flow for triggering a workflow shown below.


i) IWX will Insert a lock on the workflow.

ii) IWX will acquire the trigger for the workflow.

iii) Workflow will be executed on time.

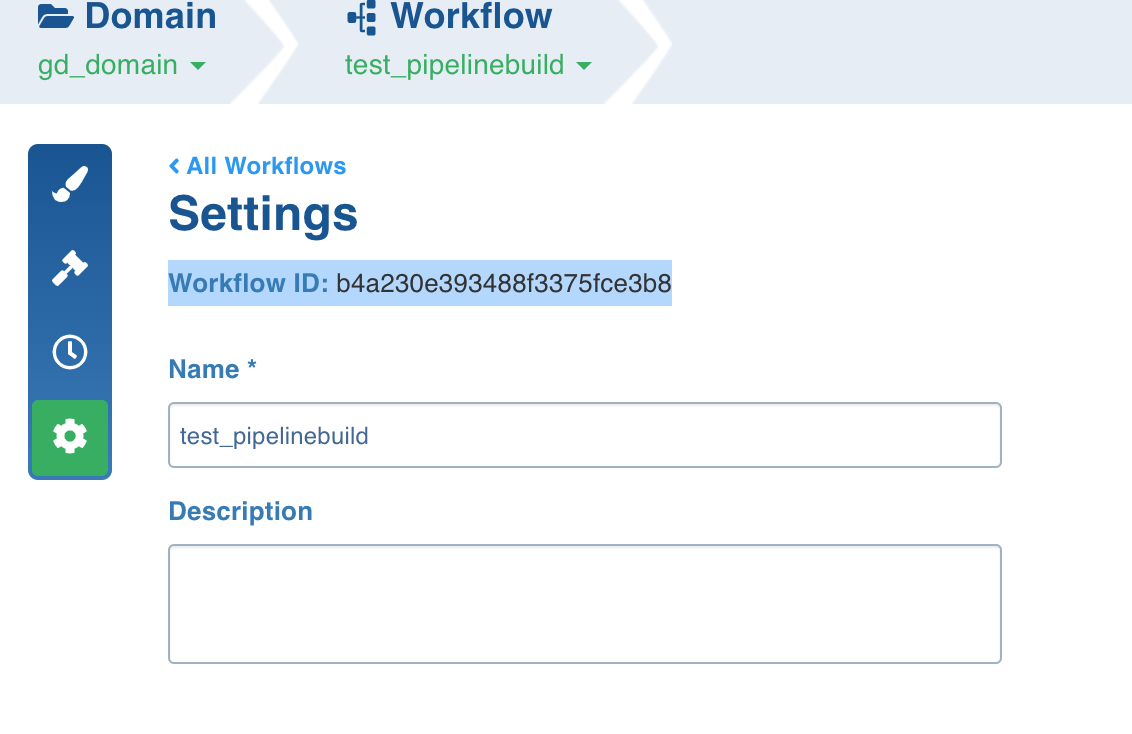

If a particular workflow is not getting triggered on time, you could see the below messages in bold at the scheduled time in $IW_HOME/logs/platform/scheduler-service.log (4bc1a49438e11829a382b2c8 is the ID of the workflow which you can get from Infoworks UI)






2021-03-02 04:00:05,549 INFO  [QuartzScheduler_QuartzSchedulerThread] dao.LocksDao:90 : Inserting lock for trigger iw_workflow-build:b4a230e393488f3375fce3b8.workflow-build:b4a230e393488f3375fce3b8
2021-03-02 04:00:05,577 INFO  [QuartzScheduler_QuartzSchedulerThread] dao.LocksDao:162 : Removing trigger lock iw_workflow-build:b4a230e393488f3375fce3b8.workflow-build:b4a230e393488f3375fce3b8.NON_CLUSTERED
2021-03-02 04:00:05,585 INFO  [QuartzScheduler_QuartzSchedulerThread] dao.LocksDao:164 : Trigger lock iw_workflow-build:b4a230e393488f3375fce3b8.workflow-build:b4a230e393488f3375fce3b8.NON_CLUSTERED removed.
2021-03-02 04:00:05,585 DEBUG [QuartzScheduler_QuartzSchedulerThread] *core.QuartzSchedulerThread:276 : batch acquisition of 0 *



IWX will try to Insert a lock for the workflow and then immediately the lock will be removed without triggering it. The batch acquisition count will be displayed as 0.


Root cause: This issue happens if there are three or more workflows scheduled to run a particular point in time because of the misfire threshold being 5 seconds and a single scheduler thread is taking care of the triggers. This is a limitation in the IWX scheduler which is fixed in IWX v4.5


Solution: Perform the below steps to apply the patch for this issue in IWX versions below 4.5

a) Login to IWX Edge node as Infoworks user.
b) Move the existing scheduler-service.jar located at $IW_HOME/platform/bin/scheduler-service.jar to /opt/infoworks directory (mv /opt/infoworks/platform/bin/scheduler-service.jar /opt/infoworks/bkp_scheduler-service.jar_bkp).
c) Download the new scheduler-service.jar from the location. https://drive.google.com/file/d/1-A_c_PML6-X0muEDWvRQe1uspW8rJ94i/view?usp=sharing
d) Copy the downloaded jar to $IW_HOME/platform/bin/
e) chmod 777 $IW_HOME/platform/bin/scheduler-service.jar
f) After the copy, run the below cksum command and verify the checksum

cksum scheduler-service.jar
1471893557 47252 scheduler-service.jar

g) Restart platform service.

$IW_HOME/bin/stop.sh platform
$IW_HOME/bin/start.sh platform

This should resolve the scheduler issue


Applicable Infoworks Versions

v3.1.2,v4.0.v4.1,v4.2.x
